LTI 20/20 TruVISION™

Photo/Video Laser Speed Measurement Device
Quote

Product List

Submit Request

LTI 20/20 TruVISION™

The Next Generation of Photo and Video Speed and Traffic Enforcement Technology

Description:

Elevate your ability to enforce traffic violations. The TruVISION combines a lidar speed gun with a digital video camera that records dangerous driving behaviors, providing the most accurate photo and video capabilities in the industry.

Request A Demo

SKU: 7007310

Overview Videos Downloads Primary Applications Key Features Specs

Overview

For US market only.

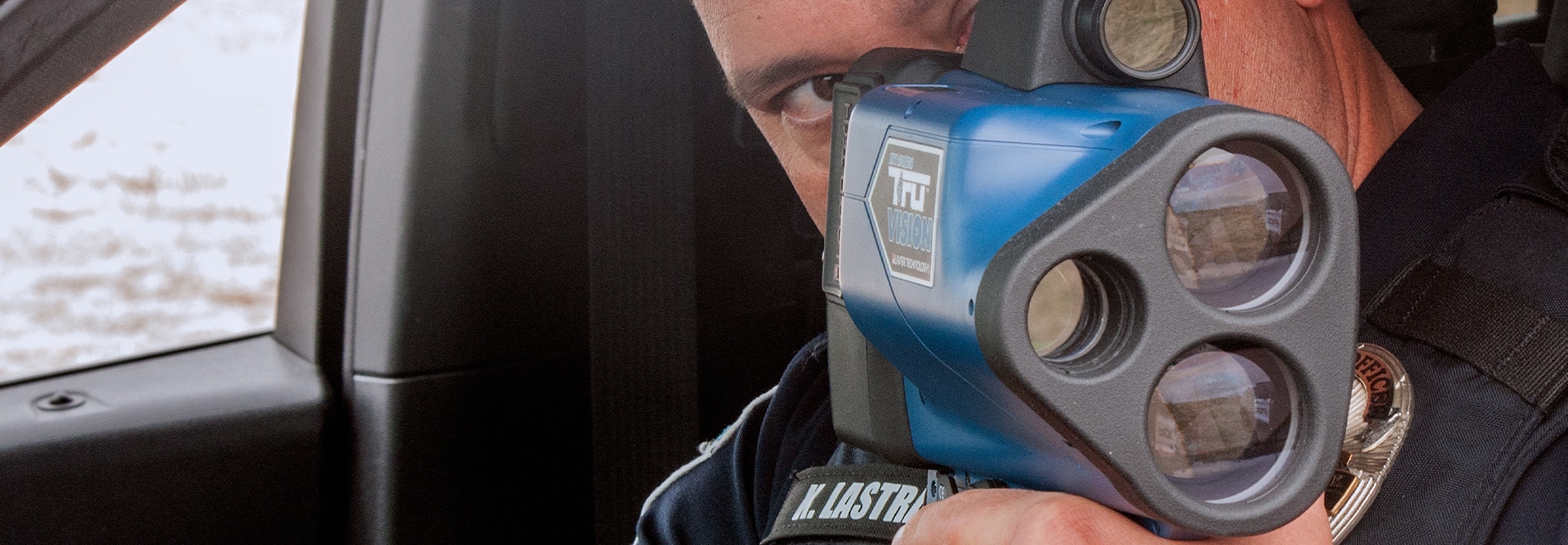

The TruVISION™ laser speed measurement device delivers the advanced technology you need to document traffic safety violations. This state-of-the-art handheld laser speed gun gathers and stores the evidence for speeding, tailgating and distracted driving violations. It also provides a high-resolution image of the license plate number and a full-length video of the violation.

Use the TruVision as a handheld device and be mobile, or mount this unit on a tripod for hands-free operation. Intuitive and color-coded graphical icons make the device easy to use without advanced training. The removable SD card allows for secure transfer of all field data to the office. With 128-bit secure data encryption, you’ll have a complete chain of evidence that is tamper-proof if ever challenged in court.

Use the tPrint app to expand your options for wireless printing from Laser Technology’s video enforcement instruments. tPrint works with your laser to display and print images and speed data with Android-compatible Wi-Fi or Bluetooth printers. Or, send images of infractions down the road to an interceptor’s device.

Our patented DBC (Distance Between Cars) technology measures the time and distance between vehicles giving you the capability to prove following too closely / tailgating violations. (optional)

The multiple operational modes available on the TruVISION gives you the ultimate versatility to adjust and adapt as needed depending on the circumstance:

  • Speed Mode – Collect speed measurements and all pertinent data for oncoming or departing vehicles within dense traffic.
  • Auto Mode – Automatically captures images within a fixed distance, such as school and construction zones.
  • Rear Plate Mode – Measure the speed and maintain a chain of evidence until the rear license plate is captured.



Optional Upgrades:

Tailgating Mode (optional) – An option for LTI’s TruCAM II and TruVISION products for tailgating in addition to speed enforcement. Measure the speed, traveling time and distance between two vehicles.



Night Mode (optional) – Used with the IR Illuminator. The IR Illuminator emits a continuous invisible infrared light source and is mounted on the left side of the laser device for nighttime or low light conditions. The infrared illuminator can illuminate the vehicle license plate (reflective) up to 120 feet for the TruVISION to capture video of speeding vehicles at night. Must be purchased with the TruVISION Night Mode feature.

New TruVISION Purchases

  • Includes Night Mode, Illuminator and Bracket

Retrofit my unit

  • Your unit will need to be sent in to LTI for service.
×

Videos

Experience the LTI 20/20 TruVISION™

The TruVISION laser speed gun upgrades the industry-leading technology used in our original LTI 20/20 TruCAM®, adding auto-focus and auto-iris adjustment features resulting in easier operation and higher quality images.

Effective Traffic Safety Tactics Used Around the World

See highlights of how other countries have implemented an effective video-backed traffic safety program that has proven to save lives.

LTI 20/20 TruVISION™ Video Speed Enforcement

Discover the benefits of using the all new LTI 20/20 TruVISION/TruCAM II. Elevate your results with this next generation in traffic enforcement laser technology.

Downloads

LTI 20/20 TruVISION™ Product Information Download LTI 20/20 Product Solutions Download TruCAM II/TruVISION FAQs Download Video-Backed Traffic Enforcement Case Study Download Case Study: Georgia DPS Reduces CMV-Related Crashes Download

Key Features

Transflective LCD Screen

The TruVISION’s large 3.7” transflective LCD screen gives you the capability to see clearly what you are doing even while in bright sunlight.

AdapTec™ Technology

LTI’s new AdapTec technology auto adjusts the focus, iris and shutter speed for you. Quickly view license plate details and collect images that are crystal clear from up to ± 450 feet away.

DBC (Distance Between Cars) Technology

This patented technology measures the time and distance between vehicles, making the TruVISION much more than a speed enforcement tool. Use this device for enforcing tailgating, aggressive driving, distracted driving, obstructing traffic and misuse of HOV lanes.

Specifications

Maximum Range:

4,000 ft

Minimum Range:

Speed Mode: 50 ft; Weather Mode: 200 ft; Continuous Mode: 50 ft

Range Accuracy:

± 6 in absolute accuracy

Display Resolution:

Speed: ± 1 mph; Range: 0.1 ft unit of measure

Speed Range:

0 to 200 mph (approaching and departing)

Speed Accuracy:

± 1 mph

Optimum Camera Operating Range:

100 – 490 ft

Optimum Focus Distance:

450 ft

Measurement Time:

0.33 sec
